Bright Future with SAM HWAN VINA

STEEL
STRAPPING

(RD-HYBRID RD-HD-HT-USLM)

    REGULAR DUTY (STANDARD DUTY) STRAPPING
  • This medium carbon Steel Strapping is applied in general industries widely
    with hand tools and automatic machines as well.
    • HYBRID REGULAR DUTY (STANDARD DUTY) STRAPPING
  • This Strapping has higher Breaking Strength than Standard Duty, but similar Elongation.
  • This Strapping is optimized for certain areas of packaging like Plywood,
    Pallets and Sawn Timber packagings.
    • HEAVY DUTY STRAPPING / (HD)
  • This products is Heat Treated for Stable Physical Properties of Breaking Strength & Elongation making it suitable for general heavy duty packaging.
    • HIGH TENSILE STRAPPING / (HT-AAR CERTIFICATE)
  • This Heat Treated Strapping with much higher Breaking Strength & Elongation is highly suitable for AAR certification.
    • USLM STRAPPING
  • Specialized for securing lashing & lifting, used with grit seals.
SPECIFICATIONS
SIZE RD (SD) HYBRID RD (SD) HD HT (AAR) USLM LENGTH /
WEIGHT		 COIL
WINDING
Width Thickness Average Strength Average Strength Average Strength Average Strength Min. Strength
inch mm inch mm lbs N Kgf lbs N Kgf lbs N Kgf lbs N Kgf lbs N Kgf ft/lb m/kg
3/8 9.5 0.015 0.38 680 3,000 310 - - - - - - - - - - - - 52.4 35.2 Oscillated/
( Mill Wound)
Ribbon Wound
3/8 9.5 0.020 0.51 910 4,010 410 - - - - - - - - - - - - 39.3 26.4
1/2 12.7 0.015 0.38 910 4,010 410 - - - - - - - - - - - - 39.3 26.4 Oscillated/
( Mill Wound)
Ribbon Wound
1/2 12.7 0.017 0.43 1,020 4,500 460 1,150 5,070 520 - - - - - - - - - 34.7 23.3
1/2 12.7 0.020 0.51 1,210 5,340 550 1,360 6,000 620 - - - 1,550 6,840 700 - - - 29.4 19.8
1/2 12.7 0.023 0.58 1,380 6,090 630 1,540 6,790 700 1,560 6,880 710 1,760 7,760 800 - - - 25.6 17.2
5/8 15.9 0.015 0.38 1,130 4,980 510 - - - - - - - - - - - - 31.4 21.1 Oscillated/
( Mill Wound)
Ribbon Wound
5/8 15.9 0.020 0.51 1,520 6,700 690 1,700 7,500 770 - - - 1,930 8,510 870 - - - 23.6 15.9
5/8 15.9 0.022 0.56 1,670 7,360 760 - - - - - - - - - - - - 21.5 14.5
5/8 15.9 0.023 0.58 1,730 7,630 780 1,930 8,510 870 1,950 8,600 880 2,200 9,700 990 - - - 20.5 13.8
3/4 19.0 0.015 0.38 1,350 5,950 610 - - - - - - - - - - - - 26.2 17.6 Oscillated /
( Mill Wound)
Ribbon Wound
Jumbo Wound
3/4 19.0 0.017 0.43 1,530 6,750 690 1,710 7,540 770 - - - - - - - - - 23.2 15.6
3/4 19.0 0.020 0.51 1,810 7,980 820 2,030 8,950 920 - - - 2,310 10,190 1,040 - - - 19.6 13.2
3/4 19.0 0.022 0.56 1,990 8,780 900 - - - - - - - - - - - - 17.5 11.7
3/4 19.0 0.023 0.58 2,060 9,080 930 2,310 10,190 1,040 2,330 10,280 1,050 2,630 11,600 1,190 - - - 17.1 11.5
3/4 19.0 0.025 0.64 2,270 10,010 1,030 2,550 11,250 1,150 2,570 11,330 1,160 2,900 12,790 1,310 - - - 15.7 10.5
3/4 19.0 0.028 0.71 2,520 11,110 1,140 - - - - - - - - - - - - 14.1 9.4
3/4 19.0 0.029 0.74 - - - 2,940 12,970 1,330 2,970 13,100 1,340 3,350 14,770 1,510 - - - 13.5 9.0
3/4 19.0 0.031 0.79 2,810 12,390 1,270 3,140 13,850 1,420 3,170 13,980 1,430 3,570 15,740 1,610 - - - 12.7 8.5
3/4 19.0 0.035 0.89 - - - - - - - - - - - - - - - 11.2 7.5
1.0 25.4 0.031 0.79 3,750 16,540 1,690 4,200 18,520 1,890 4,240 18,700 1,910 4,780 21,080 2,160 - - - 9.4 6.3 Ribbon Wound
Jumbo Wound
1.0 25.4 0.035 0.89 4,220 18,610 1,900 4,730 20,860 2,130 4,780 21,080 2,160 - - - - - - 8.4 5.6
1-1/4 31.8 0.025 0.64 - - - 4,260 18,790 1,920 4,300 18,960 1,940 4,840 21,340 2,180 - - - 9.4 6.3 Ribbon Wound
Jumbo Wound
(RD, HD, HT)
1-1/4 31.8 0.028 0.71 4,220 18,610 1,900 - - - - - - - - - - - - 8.3 5.6
1-1/4 31.8 0.029 0.74 - - - 4,920 21,700 2,220 4,970 21,920 2,240 5,600 24,700 2,520 - - - 8.1 5.4
1-1/4 31.8 0.031 0.79 4,690 20,680 2,120 5,250 23,150 2,370 5,310 23,420 2,390 5,980 26,370 2,700 - - - 7.6 5.1
1-1/4 31.8 0.035 0.89 5,290 23,330 2,390 5,920 26,110 2,670 5,980 26,370 2,700 6,730 29,680 3,030 - - - 6.7 4.5
1-1/4 31.8 0.039 1.00 5,940 26,200 2,680 6,650 29,330 3,000 - - - - - - - - - 6.0 4.0
1-1/4 31.8 0.044 1.12 - - - - - - - - - - - - 8,500 37,810 3,860 5.3 3.6
1-1/4 31.8 0.050 1.27 - - - - - - - - - - - - 9,700 43,150 4,400 4.7 3.2
Elongation 1~3 % 1~4 % 4~7 % Min. 8% Min. 8%
Twist Max Twist: 20 degrees in 8 ft (2.4 m )
Camber Max Camber: Less than 1/2" (12mm) in any 8 ft (2.4 m)
Coil Set Max Coil Set: Less than 1.0" (25.4mm) in any 8 ft (2.4 m)
WOUND TYPE
WINDING INSIDE DIAMETER OUTSIDE DIAMETER (MAX) FACE(COIL WIDTH) APPROX. WEIGHT
inch mm inch mm inch mm lbs kgs
PORTABLE (DEMO) 6 150 12 295 WIDTH OF STRAP 7-15 3-7
MINI RIBBON 8 200 21 550 WIDTH OF STRAP 22-33 10-30
12 300 25 640 WIDTH OF STRAP 22-45 10-45

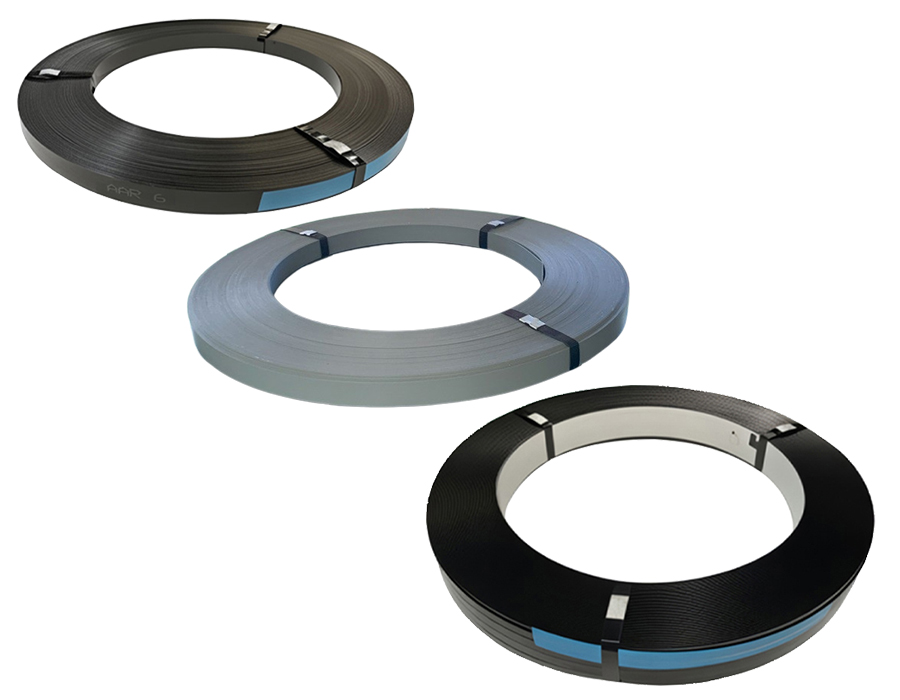

RIBBON 16 406 27.56 700 WIDTH OF STRAP 50-110 23-50

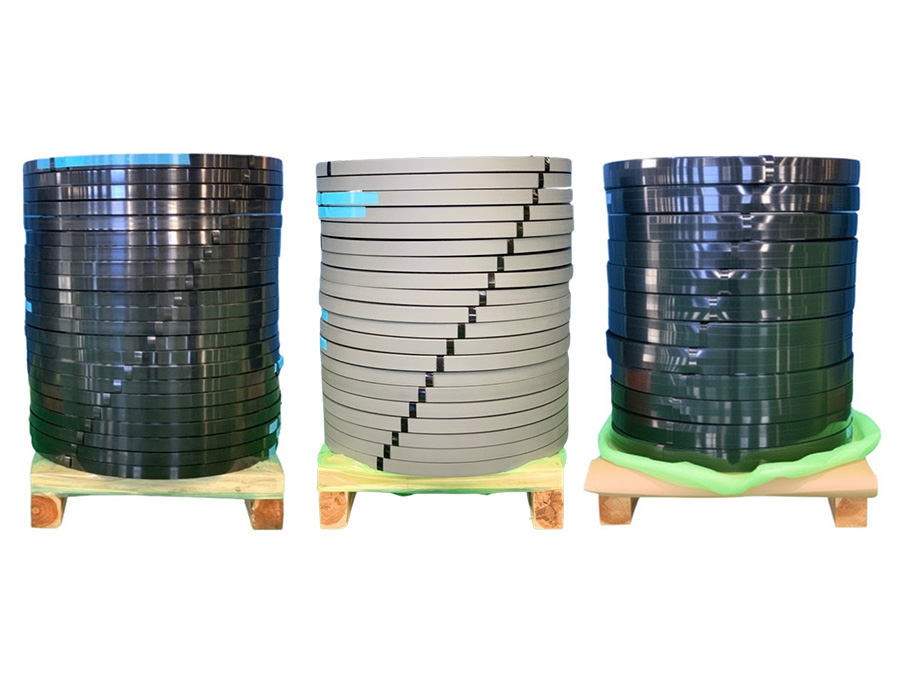

OSCILLATED
(MILL WOUND)		 16 406 23.62 600 2.5-2.56 63.5-65 100 45
JUMBO 16 406 31.5 800 7.5 190 1000 450

* Above number depends on size, please check your requirement before order.

SURFACE FINISH
Black painted & waxed
Zinc coated & waxed
Green painted & waxed
Brown painted & waxed
Sky-Blue painted & waxed
Blue Tempered & Waxed (Un-painted)
