PORTABLE (DEMO)

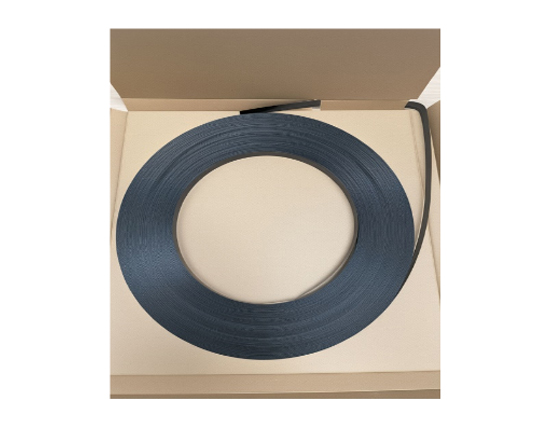

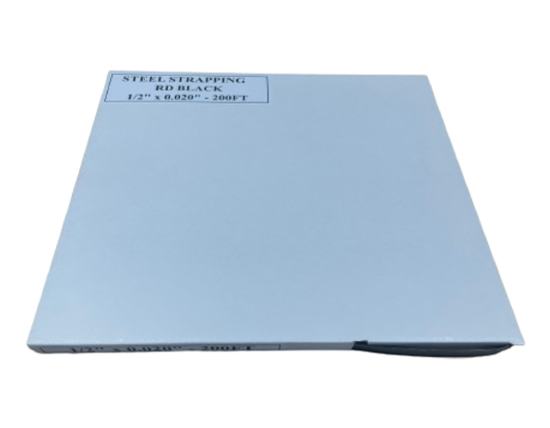

MINI COIL STEEL
STRAPPING
- Usually this is produced with RD/SD product with Ribbon wound.
- This product is easy to handle and transport and does not require the use of a dispenser
SPECIFICATIONS
| SIZE | INSIDE DIAMETER |
OUTSIDE DIAMETER (max) |
FACE (COIL WIDTH) |
APPROX. WEIGHT | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WIDTH | THICKNESS | ||||||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | lbs | kgs | lbs | kgs |
| 200ft | 300ft | ||||||||||||
| 1/2 | 12.7 | 0.020 | 0.51 | 8.7 / 6.5 | 220 / 165 | 12 | 295 | Width of Strap | 6.83 | 3.10 | 10.25 | 4.65 | |
| 0.023 | 0.58 | 7.9 / 5.0 | 200 / 127 | 8.15 | 3.70 | 12.23 | 5.55 | ||||||
| 5/8 | 15.9 | 0.020 | 0.51 | 8.6 / 6.5 | 218 / 165 | 8.55 | 3.88 | 12.80 | 5.81 | ||||
| 0.023 | 0.58 | 8.0 / 5.0 | 198 / 127 | 10.25 | 4.65 | 15.32 | 6.95 | ||||||
| 3/4 | 19.0 | 0.020 | 0.51 | 8.6 / 6.5 | 218 / 165 | 10.25 | 4.65 | 15.39 | 6.98 | ||||
| 0.023 | 0.58 | 7.9 / 5.0 | 200 / 127 | 12.26 | 5.56 | 18.40 | 8.35 | ||||||
* Above number depends on size, please check your requirement before order.
