Bright Future with SAM HWAN VINA
PERFORATED
STEEL
STRAPPING
- Perforated steel strapping is a special type that has punched holes.
- This product is ideal for structural support and reinforcement for various building applications, such as securing plumbing and electrical conduits, bracing wall studs, or connecting beams and joists.
SPECIFICATIONS

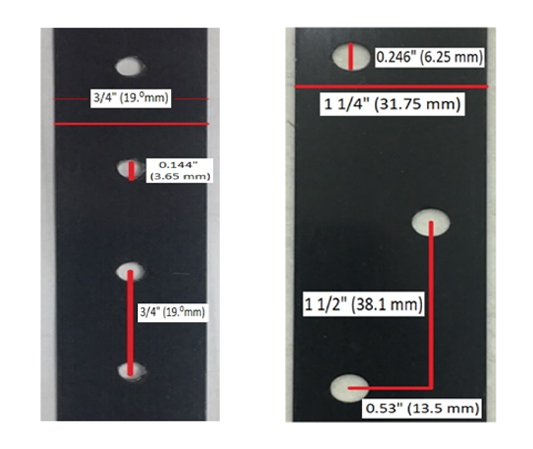

| SIZE | DIAMETER OF HOLE | DISTANCE HOLE TO HOLE |
AVE. STRENGTH | COIL WINDING | SURFACE FINISH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WIDTH | THICKNESS | |||||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | lbs | N | Kgf | ||
| 5/8 | 15.9 | 0.020 | 0.51 | 0.143 | 3.65 | 3/4 | 19 | 1,360 | 6,000 | 620 | * Oscillated * Portable (Demo) Mini coil (200ft / 300ft) |
Black Zinc |
| 15.9 | 0.023 | 0.58 | 1,540 | 6,800 | 700 | |||||||
| 3/4 | 19.0 | 0.020 | 0.51 | 1,620 | 7,150 | 730 | ||||||
| 19.0 | 0.023 | 0.58 | 1,920 | 8,470 | 870 | |||||||
| 1-1/4 | 31.8 | 0.029 | 0.74 | 0.246 | 6.25 | 1-1/2 | 38.1 | 4,080 | 18,000 | 1,840 | Ribbon Wound | |
| 31.8 | 0.031 | 0.79 | 4,360 | 19,230 | 1,970 | Ribbon Wound | ||||||
* Above number depends on size, please check your requirement before order.
