Bright Future with SAM HWAN VINA
SEALS FOR
STEEL &
PPY STRAPPINGS
AND BUCKLE
SPECIFICATIONS
| TYPE | MODEL NO. | STRAP SIZE | DIMENSIONS | STANDARD PACKAGE |
APPROX. WEIGHT |
SURFACE | ||
|---|---|---|---|---|---|---|---|---|
| inch | mm | (WxTxL) inch(mm) | Q'ty/Case | lbs (kgs) | ||||

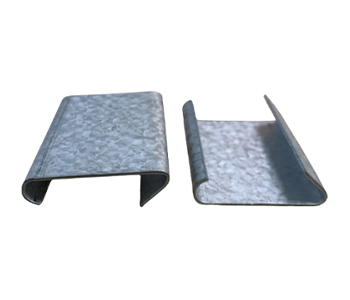

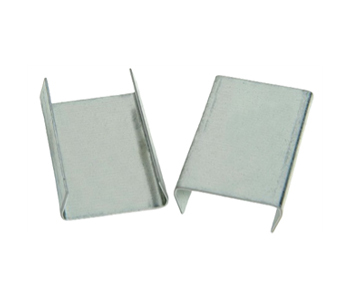

| Snap-on (Open) |
 123456789101112 |
SHS9 | 3/8 | 9.5 | 3/8 x 0.023 x 1.122 (9.5 x 0.6 x 28.5) |
2000 & per request |
10 (4.9) | GI |
| SHS13 | 1/2 | 12.7 | 1/2 x 0.023 x 1.122 (13 x 0.6 x 28.5) |
2000 & per request |
15 (6.8) | GI | ||
| SHS16 | 5/8 | 15.9 | 5/8 x 0.023 x 1.122 (16 x 0.6 x 28.5) |
2000 & per request |
16 (7.4) | GI | ||
| SHS19 | 3/4 | 19.0 | 3/4 x 0.023 x 1.122 (19 x 0.6 x 28.5) |
2000 & per request |
20 (9.2) | GI | ||

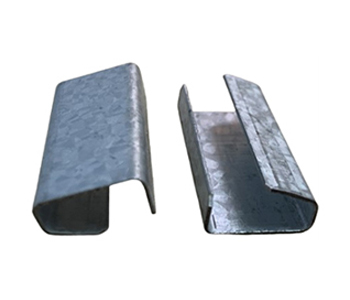

| Open flange |
 |
SHO3250 | 1-1/4 | 31.8 | 1 1/4 x 0.035 x 1.969 (32 x 0.9 x 50) |
1000 & per request |
23 (10.3) | GI |
| SHO3256 | 1 1/4 x 0.035 x 2.205 (32 x 0.9 x 56) |
1000 & per request |
25 (11.2) | GI | ||||

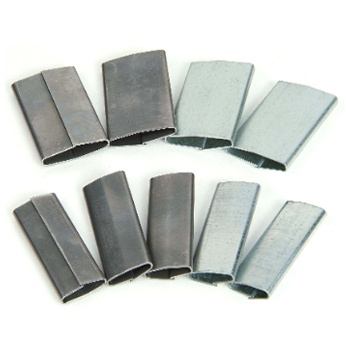

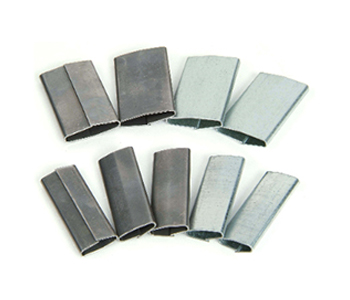

| Push-on (Closed) |
 |
SHP13 | 1/2 | 12.7 | 1/2 x 0.023 x 1.122 (13 x 0.6 x 28.5) |
2000 & per request |
21 (9.6) | GI |
| SHP16 | 5/8 | 15.9 | 5/8 x 0.023 x 1.122 (16 x 0.6 x 28.5) |
2000 & per request |
23 (10.6) | GI | ||
| SHP19 | 3/4 | 19.0 | 3/4 x 0.023 x 1.122 (19 x 0.6 x 28.5) |
2000 & per request |
31 (14.2) | GI | ||
| SHP1932 | 3/4 x 0.023 x 1.26 (19 x 0.6 x 32) |
2000 & per request |
34 (15.2) | GI | ||||
| SHP1950 | 3/4 x 0.035 x 1.969 (19 x 0.9 x 50) |
2000 & per request |
39 (17.5) | GI | ||||
| SHP1956 | 3/4 x 0.035 x 2.205 (19 x 0.9 x 56) |
1000 & per request |
45 (20.4) | GI | ||||
| SHP25 | 1.0 | 25.4 | 1.0 x 0.035 x 1.969 (25 x 0.9 x 50 ) |
500 & per request |
25 (11.5) | GI | ||
| SHP3245 | 1-1/4 | 31.8 | 1 1/4 x 0.035 x 1.772 (32 x 0.9 x 45) |
500 & per request |
27 (12.2) | GI | ||
| SHP32 | 1 1/4 x 0.035 x 1.969 (32 x 0.9 x 50) |
500 & per request |
30 (13.5) | GI | ||||
| SHP3256 | 1 1/4 x 0.035 x 2.205 (32 x 0.9 x 56) |
500 & per request |
34 (15.3) | GI | ||||

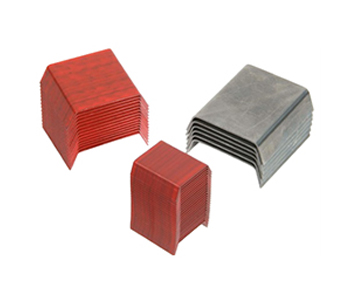

| Magazine |  |
SHM19 | 3/4 | 19.0 | 3/4 x 0.020 x 1.122 (19 x 0.5 x 28.5) |
5000 | 31 (14) | RED |
| SHM32 | 1-1/4 | 31.8 | 1 1/4 x 0.035 x 1.969 (32 x 0.9 x 50) |
1000 | 45 (20.6) | CR | ||

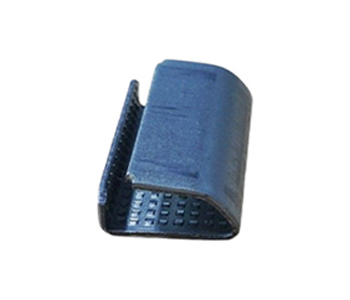

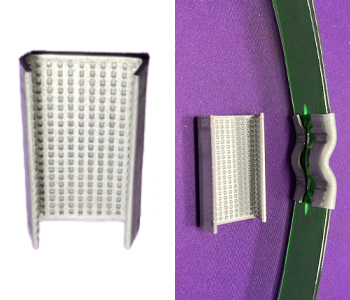

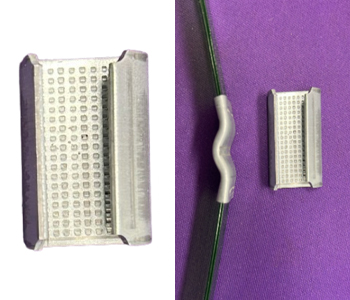

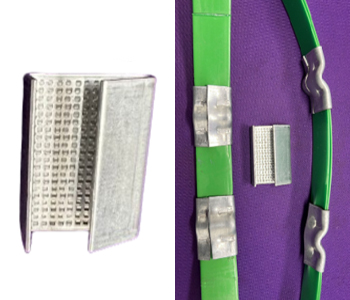

| PET Serrated (Deep & Rough) |
 |
SHPES13 | 1/2 | 12.7 | 1/2 x 0.031 x 1.142 (12.7 x 0.8 x 29) |
1000 | 13 (6) | COATED |
| SHPES16 | 5/8 | 15.9 | 5/8 x 0.039 x 1.142 (16 x 0.9 x 29) |
1000 | 20 (9) | COATED | ||
| SHPES19 | 3/4 | 19.0 | 3/4 x 0.039 x 1.142 (19 x 1.0 x 29) |
1000 | 22 (10) | COATED | ||
 |
SHPES1935 | 3/4 | 19.0 | 3/4 x 0.068 x 1.378 (19 x 1.72 x 35) |
1000 | 44 (20) | COATED | |
 |
SHPS1938 (Heavy Duty) | 3/4 | 19.0 | 3/4 x 0.047 x 1.496 (19 x 1.2 x 38) |
1000 | 31 (14) | COATED | |
 |
SHPS25 | 1.0 | 25.4 | 1.0 x 0.047 x 1.496 (25.4 x 1.2 x 38) |
500 | 22 (10) | COATED | |

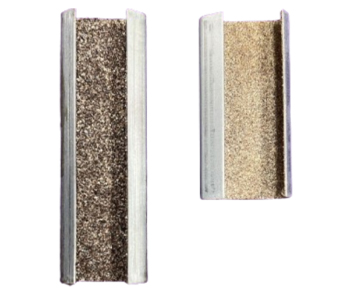

| USLM (Gritted) |
 |
SHBK2 | 1-1/4 | 31.8 | 1 1/4 x 0.044 x 2.953 (32 x 1.12 x 75) |
500 | 46 (21) | COATED |
| SHBK3 | 1-1/4 | 31.8 | 1 1/4 x 0.044 x 4.331 (32 x 1.12 x 110) |
500 | 68 (31) | COATED | ||
| PP (PPY) |
 |
SHPP13 | 1/2 | 12.7 | 1/2 x 0.023 x 1 1/4 (13 x 0.6 x 32) |
2000 & per request |
23 (10.4) | GI |
| SHPP16 | 5/8 | 15.9 | 5/8 x 0.016 x 1.142 (16 x 0.4 x 29) |
2000 & per request |
13 (6) | GI | ||
| SHPP19 | 3/4 | 19.0 | 3/4 x 0.016 x 1.142 (19 x 0.4 x 29) |
2000 & per request |
17 (7.6) | GI | ||

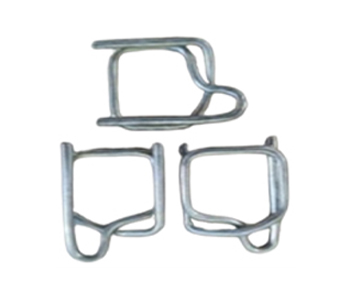

| Buckle |  |
SHBK2 | 1/2 | 12.7 | 0.787 x 0.2 x 1.18 (20 x 5 x 30) |
2000 & per request |
21 (9.6) | SHINY GALVANIZED |
