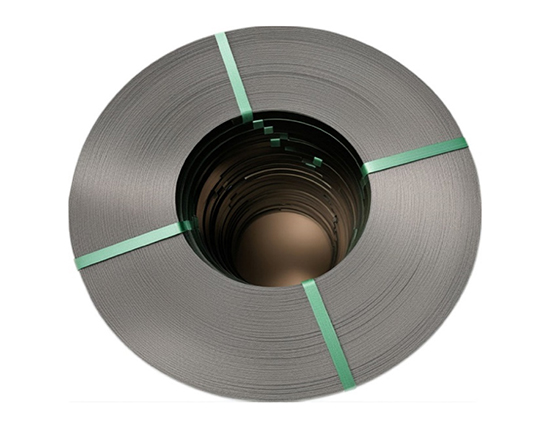

SMALL COIL
STEEL
STRAPPING

  • Usually this is produced with RD/SD product with Ribbon wound.
  • Some countries traditionally prefer these small coils of less weight traditionally.
SPECIFICATIONS
SIZE INSIDE
DIAMETER
OUTSIDE DIAMETER
(max)
FACE
(COIL WIDTH)
APPROX. WEIGHT
WIDTH THICKNESS
inch mm inch mm inch mm inch mm inch mm lbs kgs
1/2 12.7 0.015 ~ 0.023 0.38 ~ 0.60 8 200 16 ~ 19 410 ~ 480 Width of Strap 22 ~ 33 10 ~ 15
5/8 15.9 16 ~ 17 410 ~ 440 27.5 ~ 33 12.5 ~ 15
3/4 19.0 16 ~ 17 410 ~ 440 33 ~ 40 15 ~ 18
1/2 12.7 0.015 ~ 0.023 0.38 ~ 0.60 12 300 18 ~ 23 467 ~ 588 Width of Strap 22 ~ 44 10 ~ 20
5/8 15.9 18 ~ 23 467 ~ 588 27.5 ~ 55 12.5 ~ 25
3/4 19.0 18 ~ 23 467 ~ 588 33 ~ 66 15 ~ 30
1-1/4 31.8 0.031 0.79 22.2 565 100 45

* Above number depends on size, please check your requirement before order.
