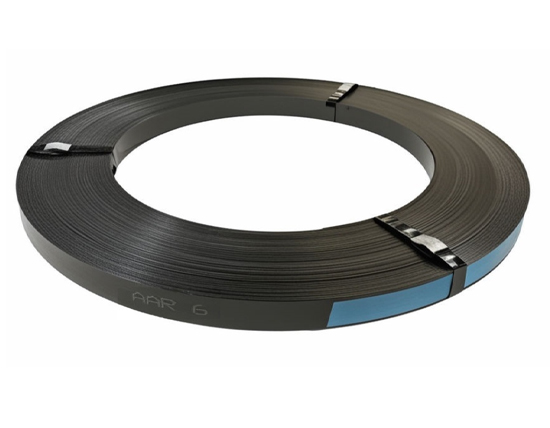

PRINTED
STEEL
STRAPPING
- We can print your company name on surface of steel strapping.
- The specifications are same as Steel strapping.
SPECIFICATIONS
| SIZE | RD (SD) | HYBRID RD (SD) | HD | HT (AAR) | USLM | LENGTH / WEIGHT |
COIL WINDING |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Width | Thickness | Average Strength | Average Strength | Average Strength | Average Strength | Min. Strength | |||||||||||||||
| inch | mm | inch | mm | lbs | N | Kgf | lbs | N | Kgf | lbs | N | Kgf | lbs | N | Kgf | lbs | N | Kgf | ft/lb | m/kg | |
| 3/8 | 9.5 | 0.015 | 0.38 | 680 | 3,000 | 310 | - | - | - | - | - | - | - | - | - | - | - | - | 52.4 | 35.2 | Oscillated/ ( Mill Wound) Ribbon Wound |
| 3/8 | 9.5 | 0.020 | 0.51 | 910 | 4,010 | 410 | - | - | - | - | - | - | - | - | - | - | - | - | 39.3 | 26.4 | |
| 1/2 | 12.7 | 0.015 | 0.38 | 910 | 4,010 | 410 | - | - | - | - | - | - | - | - | - | - | - | - | 39.3 | 26.4 | Oscillated/ ( Mill Wound) Ribbon Wound |
| 1/2 | 12.7 | 0.017 | 0.43 | 1,020 | 4,500 | 460 | 1,150 | 5,070 | 520 | - | - | - | - | - | - | - | - | - | 34.7 | 23.3 | |
| 1/2 | 12.7 | 0.020 | 0.51 | 1,210 | 5,340 | 550 | 1,360 | 6,000 | 620 | - | - | - | 1,550 | 6,840 | 700 | - | - | - | 29.4 | 19.8 | |
| 1/2 | 12.7 | 0.023 | 0.58 | 1,380 | 6,090 | 630 | 1,540 | 6,790 | 700 | 1,560 | 6,880 | 710 | 1,760 | 7,760 | 800 | - | - | - | 25.6 | 17.2 | |
| 5/8 | 15.9 | 0.015 | 0.38 | 1,130 | 4,980 | 510 | - | - | - | - | - | - | - | - | - | - | - | - | 31.4 | 21.1 | Oscillated/ ( Mill Wound) Ribbon Wound |
| 5/8 | 15.9 | 0.020 | 0.51 | 1,520 | 6,700 | 690 | 1,700 | 7,500 | 770 | - | - | - | 1,930 | 8,510 | 870 | - | - | - | 23.6 | 15.9 | |
| 5/8 | 15.9 | 0.022 | 0.56 | 1,670 | 7,360 | 760 | - | - | - | - | - | - | - | - | - | - | - | - | 21.5 | 14.5 | |
| 5/8 | 15.9 | 0.023 | 0.58 | 1,730 | 7,630 | 780 | 1,930 | 8,510 | 870 | 1,950 | 8,600 | 880 | 2,200 | 9,700 | 990 | - | - | - | 20.5 | 13.8 | |
| 3/4 | 19.0 | 0.015 | 0.38 | 1,350 | 5,950 | 610 | - | - | - | - | - | - | - | - | - | - | - | - | 26.2 | 17.6 | Oscillated / ( Mill Wound) Ribbon Wound Jumbo Wound |
| 3/4 | 19.0 | 0.017 | 0.43 | 1,530 | 6,750 | 690 | 1,710 | 7,540 | 770 | - | - | - | - | - | - | - | - | - | 23.2 | 15.6 | |
| 3/4 | 19.0 | 0.020 | 0.51 | 1,810 | 7,980 | 820 | 2,030 | 8,950 | 920 | - | - | - | 2,310 | 10,190 | 1,040 | - | - | - | 19.6 | 13.2 | |
| 3/4 | 19.0 | 0.022 | 0.56 | 1,990 | 8,780 | 900 | - | - | - | - | - | - | - | - | - | - | - | - | 17.5 | 11.7 | |
| 3/4 | 19.0 | 0.023 | 0.58 | 2,060 | 9,080 | 930 | 2,310 | 10,190 | 1,040 | 2,330 | 10,280 | 1,050 | 2,630 | 11,600 | 1,190 | - | - | - | 17.1 | 11.5 | |
| 3/4 | 19.0 | 0.025 | 0.64 | 2,270 | 10,010 | 1,030 | 2,550 | 11,250 | 1,150 | 2,570 | 11,330 | 1,160 | 2,900 | 12,790 | 1,310 | - | - | - | 15.7 | 10.5 | |
| 3/4 | 19.0 | 0.028 | 0.71 | 2,520 | 11,110 | 1,140 | - | - | - | - | - | - | - | - | - | - | - | - | 14.1 | 9.4 | |
| 3/4 | 19.0 | 0.029 | 0.74 | - | - | - | 2,940 | 12,970 | 1,330 | 2,970 | 13,100 | 1,340 | 3,350 | 14,770 | 1,510 | - | - | - | 13.5 | 9.0 | |
| 3/4 | 19.0 | 0.031 | 0.79 | 2,810 | 12,390 | 1,270 | 3,140 | 13,850 | 1,420 | 3,170 | 13,980 | 1,430 | 3,570 | 15,740 | 1,610 | - | - | - | 12.7 | 8.5 | |
| 3/4 | 19.0 | 0.035 | 0.89 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 11.2 | 7.5 | |
| 1.0 | 25.4 | 0.031 | 0.79 | 3,750 | 16,540 | 1,690 | 4,200 | 18,520 | 1,890 | 4,240 | 18,700 | 1,910 | 4,780 | 21,080 | 2,160 | - | - | - | 9.4 | 6.3 | Ribbon Wound Jumbo Wound |
| 1.0 | 25.4 | 0.035 | 0.89 | 4,220 | 18,610 | 1,900 | 4,730 | 20,860 | 2,130 | 4,780 | 21,080 | 2,160 | - | - | - | - | - | - | 8.4 | 5.6 | |
| 1-1/4 | 31.8 | 0.025 | 0.64 | - | - | - | 4,260 | 18,790 | 1,920 | 4,300 | 18,960 | 1,940 | 4,840 | 21,340 | 2,180 | - | - | - | 9.4 | 6.3 | Ribbon Wound Jumbo Wound (RD, HD, HT) |
| 1-1/4 | 31.8 | 0.028 | 0.71 | 4,220 | 18,610 | 1,900 | - | - | - | - | - | - | - | - | - | - | - | - | 8.3 | 5.6 | |
| 1-1/4 | 31.8 | 0.029 | 0.74 | - | - | - | 4,920 | 21,700 | 2,220 | 4,970 | 21,920 | 2,240 | 5,600 | 24,700 | 2,520 | - | - | - | 8.1 | 5.4 | |
| 1-1/4 | 31.8 | 0.031 | 0.79 | 4,690 | 20,680 | 2,120 | 5,250 | 23,150 | 2,370 | 5,310 | 23,420 | 2,390 | 5,980 | 26,370 | 2,700 | - | - | - | 7.6 | 5.1 | |
| 1-1/4 | 31.8 | 0.035 | 0.89 | 5,290 | 23,330 | 2,390 | 5,920 | 26,110 | 2,670 | 5,980 | 26,370 | 2,700 | - | - | - | - | - | - | 6.7 | 4.5 | |
| 1-1/4 | 31.8 | 0.039 | 1.00 | 5,940 | 26,200 | 2,680 | 6,650 | 29,330 | 3,000 | - | - | - | - | - | - | - | - | - | 6.0 | 4.0 | |
| 1-1/4 | 31.8 | 0.044 | 1.12 | - | - | - | - | - | - | - | - | - | - | - | - | 8,500 | 37,810 | 3,860 | 5.3 | 3.6 | |
| 1-1/4 | 31.8 | 0.050 | 1.27 | - | - | - | - | - | - | - | - | - | - | - | - | 9,700 | 43,150 | 4,400 | 4.7 | 3.2 | |
| Elongation | 1~3 % | 1~4 % | 4~7 % | Min. 8% | Min. 8% | ||||||||||||||||
| Twist | Max Twist: 20 degrees in 8 ft (2.4 m ) | ||||||||||||||||||||
| Camber | Max Camber: Less than 1/2" (12mm) in any 8 ft (2.4 m) | ||||||||||||||||||||
| Coil Set | Max Coil Set: Less than 1.0" (25.4mm) in any 8 ft (2.4 m) | ||||||||||||||||||||
